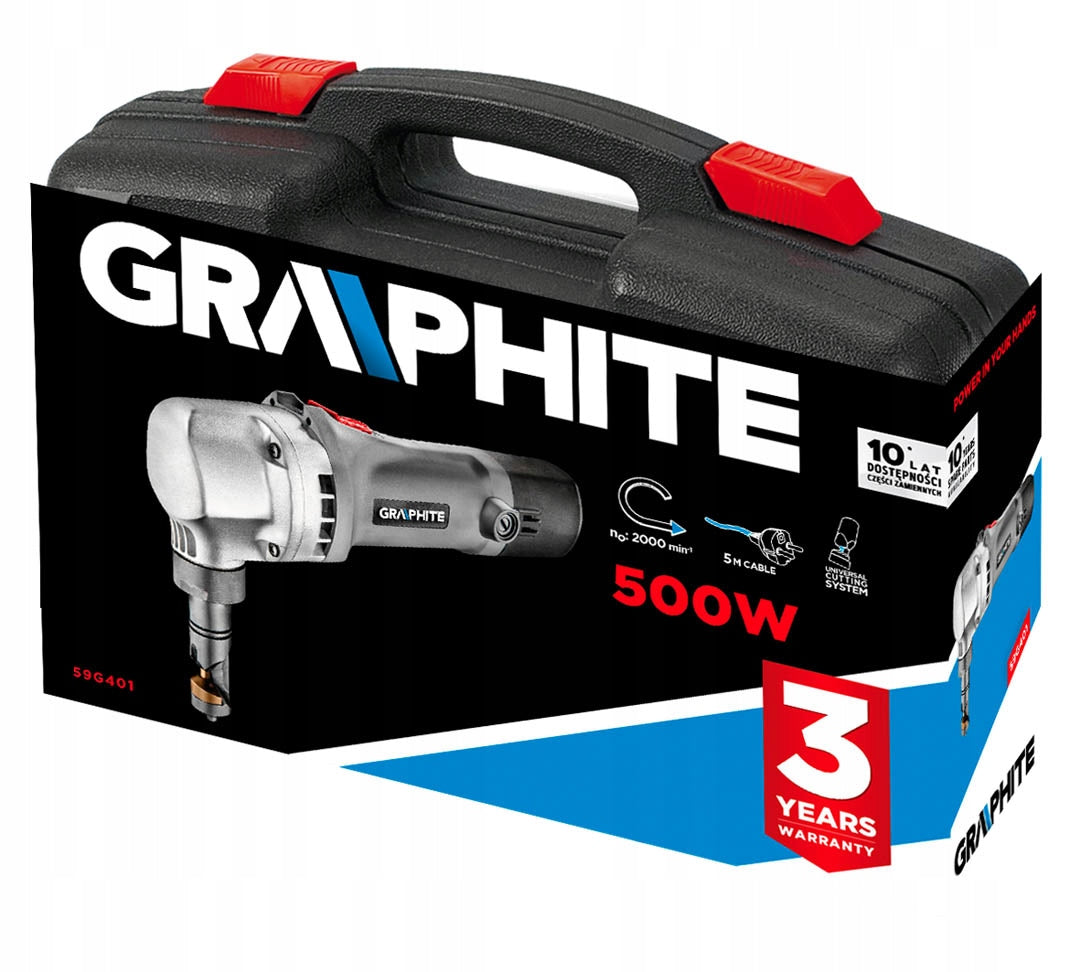

Skardos kirpimo žirklės 500W su dėklu GRAPHITE 59G401

Trumpai apie prekę

Prekė: Skardos kirpimo žirklės 500W su dėklu GRAPHITE 59G401. Kategorija: Skardos žirklės.

• Gamintojas: GRAPHITE
• Modelis: 59G401
• Galia: 500 W

500W sheet metal cutters in case 59G401 GRAPHITE

Product code: 59G401

Shears for sheet metal GRAPHITE 59G401 is a professional tool with high power, designed for efficient cutting of various types of metal sheets. The device perfectly copes with both straight and profiled sheet metal – corrugated or trapezoidal. Thanks to the well-thought-out design of the die, the shears allow not only straight cutting, but also efficient cutting of complex curves and holes.

The heart of the device is a 500W motor, which in combination with a durable transmission enclosed in an aluminum housing, guarantees high efficiency even during intensive roofing or workshop work. The functionality is enhanced by the rotating die holder, which can be adjusted every 90°, allowing you to freely change the cutting direction without having to maneuver the entire device.

The comfort of work is enhanced by an extremely long, 5-meter power cord, which eliminates the need for continuous use of extension cords. The shears are also equipped with a switch lock, which is invaluable when making long cuts, and a lock function against accidental start-up for maximum user safety.

Technical data:

• Rated power: 500W
• Power supply voltage: 230V
• Maximum cutting thickness (hard steel): 0.8mm
• Maximum cutting thickness (soft steel): 1.6mm
• Maximum cutting thickness (aluminium): 2.5mm
• Number of knife cycles: 2000/min
• Cutting trace width: 5mm
• Minimum starting hole diameter: 22mm
• Minimum cutting radius per circle: 60mm
• Power cord length: 5m

GRAPHITE shears are a type of “cutting” tool, which means that they remove a strip of material with a width of 5mm during operation. Thanks to this, the edges after cutting remain even and do not deform, which is crucial for precise fitting of flashing elements. The aluminum gear housing not only protects the mechanism, but also perfectly dissipates heat, which extends the life of the tool.

Included with the device is a practical transport case, which facilitates storage and protects the equipment from mechanical damage and dirt during transport to the construction site.

Tips for use:

• Cutting line lubrication: To extend the life of the punch and die, it is worth applying a small amount of machine oil to the cutting line, especially when working with steel sheet.
• Cutting holes: When cutting holes inside the sheet, you must first make a starting hole with a diameter of at least 22mm to freely enter the die.
• Brush control: The device has a design that allows you to replace carbon brushes yourself. Regularly check their condition to avoid engine interruptions.
• Tool handling: Do not push the shears too hard forward. Allow the motor to run at its natural pace (2000 cycles per minute), which will prevent overheating and provide a cleaner cutting edge.
• Storage: After completing the work, clean the matrix area from metal chips so that they do not block the mechanism at the next start-up.

Set contents: 59G401 jump shears, flat wrench, hex key, transport case.
